We provide a full range of spare parts for Bitzer compressors—including major mechanical components and electrical accessories.
Are you currently using a Bitzer 4FC-3.2 compressor?
Is your compressor experiencing performance issues or requiring replacement parts?
Do you find it difficult to identify the correct part numbers and dimensions when ordering spare parts?
If so, there is no need to worry.

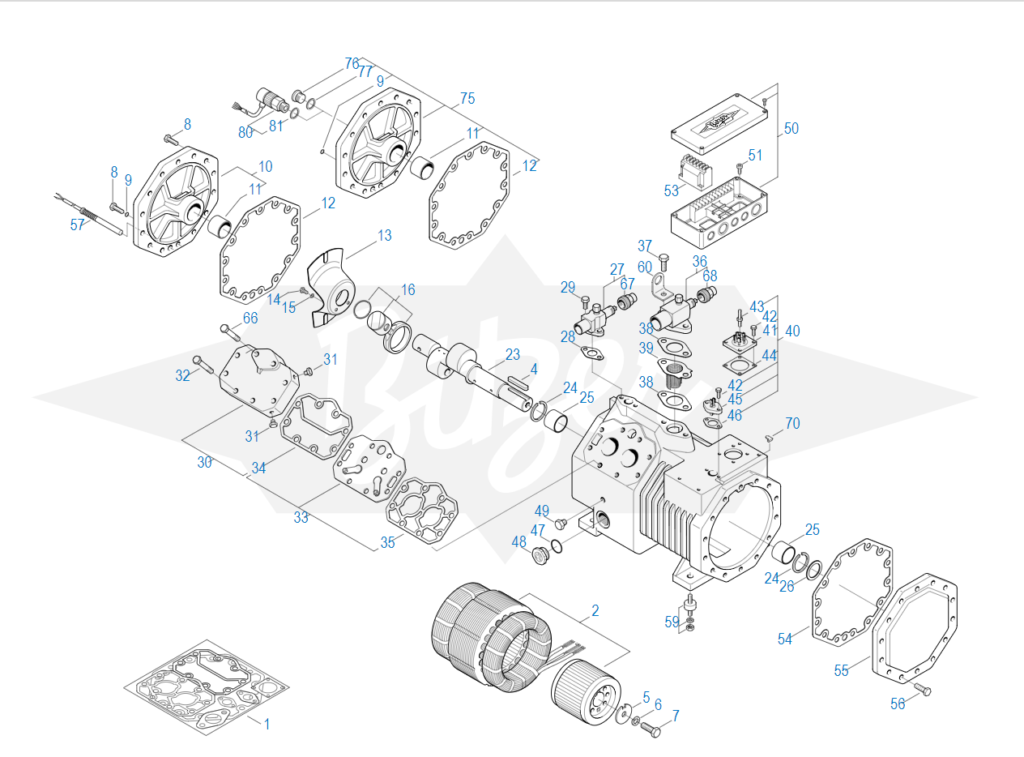

We have prepared a complete and accurate Bitzer 4FC-3.2 compressor spare parts list to help you solve these problems easily and efficiently.
We provide a full range of spare parts for Bitzer compressors—including major mechanical components and electrical accessories. Our parts include:
Eccentric shaft & crankshaft
Pistons and connecting rods
Valve plates & cylinder heads
Bearing covers & bearing sleeves
Oil heaters
Terminal boards & junction boxes
Shut-off valves & sight glasses
Complete gasket kits
All components are manufactured according to OEM specifications with precise dimensions and stable quality. They are suitable for compressor repair, overhaul, routine maintenance, and compressor rebuilding.
Part No.: 30111150 | Serial No.: 23
The eccentric shaft and crankshaft are the core mechanical power components that drive the pistons in a reciprocating motion. They require high-strength and wear-resistant materials to ensure smooth operation even under heavy load.
Connecting rod – Part No.: 30213401 | Serial No.: 17 | Size: Ø58.3 × Ø15 × 83
Piston – Part No.: 30223370 | Serial No.: 18 | Size: Ø41
Piston assembly – Part No.: 30229795 | Serial No.: 16 | Size: Ø41
These precision-machined components ensure stable piston movement inside the cylinder and maintain high compression efficiency. Designed for long-term continuous operation in refrigeration systems.
Cylinder head – Part No.: 30236013 | Serial No.: 30 | Size: 165 × 123 × 43
Valve plate – Part No.: 30405909 | Serial No.: 33 | Size: Ø41
Both the cylinder head and valve plate are critical to compression efficiency and sealing performance. We also supply matching valve plate gaskets and cylinder head gaskets to maintain perfect sealing.
Crankcase bearing cover – Part No.: 30510741 | Serial No.: 10
Motor-end cover – Part No.: 30522901 | Serial No.: 55
Bearing sleeves – Part No.: 31111201 / 31112501 | Size: Ø40 × Ø36 × 30
Bearing sleeves and covers help maintain crankshaft alignment and reduce vibration and wear, extending the operational life of the compressor.
Oil sling ring – Part No.: 32110503 | Size: Ø185 × 51
Thrust washer – Part No.: 31210302 | Size: Ø46 × Ø37.5 × 3
Suction filter – Part No.: 36201202 | Size: Ø32 × 45
These components keep the lubrication and suction system clean, reduce mechanical wear, and improve overall system stability.
Part No.: 34321901 — 200–260 V, 120 W
Part No.: 34321902 — 100–140 V, 120 W
Oil heaters prevent oil from thickening at low temperatures and ensure smooth circulation, protecting the compressor during start-up and operation in cold environments.
Terminal boards – Part No.: 34550015 / 34550401
Aluminum junction box – Part No.: 34350241 | Size: 206 × 136 × 73
Black plastic junction box – Part No.: 34350944 | Size: 202 × 95 × 57
Made from heat-resistant and corrosion-resistant materials, these electrical components ensure safe and reliable system connections.
Discharge shut-off valve – Part No.: 36131510 | Size: Ø16 – Ø14
Suction shut-off valve – Part No.: 36131512 | Size: Ø22 (7/8″)
Sight glass – Part No.: 36181501 | Size: Ø22 × 1 1/8″ – 18 UNEF
Used for piping connections, system monitoring, and maintenance operations.
We supply a complete range of sealing gaskets, including:
Valve plate gasket (37251701)
Cylinder head gasket (37261801)
Shut-off valve gaskets (37270203 / 37270405)
Terminal board gaskets (37271801 / 37293801)
Bearing cover gasket (37293703)
Complete gasket kit (37283504)
Made of oil-resistant and heat-resistant materials to ensure long-lasting sealing performance.
We supply parts for Bitzer, Refcomp, Copeland, Carrier, Frascold, Bock, Dorin, and more.
We support OEM production, sample processing, and customized machining.
Each part undergoes dimensional testing, hardness testing, and balance inspection.
If you need detailed technical data, stock availability, or a quotation, feel free to contact us.
We will respond quickly and provide professional assistance for your Bitzer 4FC-3.2 compressor maintenance needs.
